Sand Maker
Sand Maker

Sand Maker

Hot

Processing Capacity: 12-360t/h

Feeding Size: 35-60mm

Powder: 37-150kw

E-mail:market@hxjq.com
Send Inquiry

Introduction to Sand Maker

Sand maker or sand crusher is a type of sand crusher suitable for the crushing of soft, hard and extremely hard material and reshape them into smaller sizes.

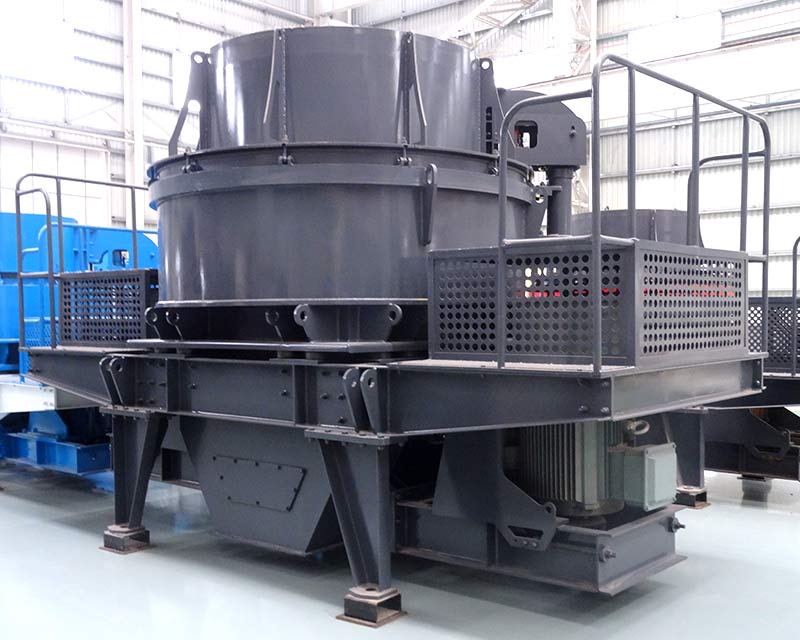

Sand Maker

Update Versions of HXJQ Sand Maker:

HX-series sand maker now has four kinds: respectively HVI reshaping machine, HX sand maker, VSI sand maker and TK sand maker, following let's see what they look like.



250T/H Sand Maker in Ho chi minh, Vietnam

1. Location: Ho chi minh

2. Raw material: Granite

3. Capacity: 250tph

sand maker

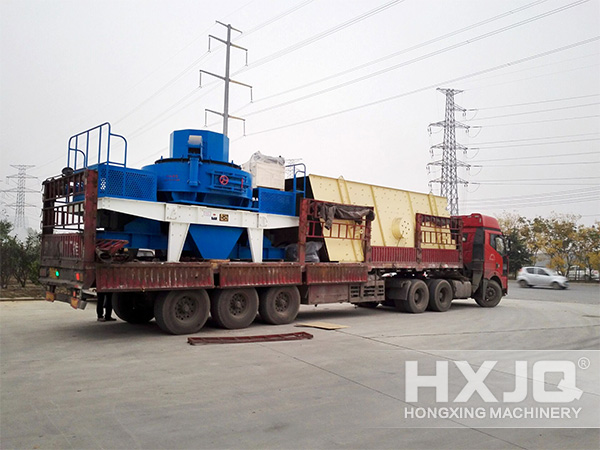

(Sand Maker is Now Being Delivered with Vibrating Screen)

sand maker

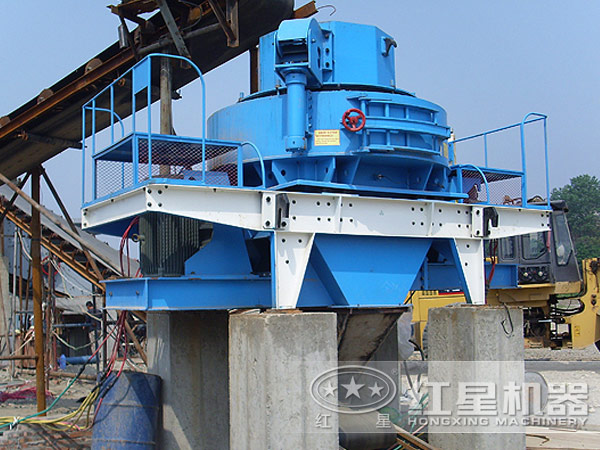

(Sand Maker is Now Being Installed)

sand maker

(Begin the test Run with Worker on For Checking)

Making Every Part of Sand Maker Excellent

sand maker

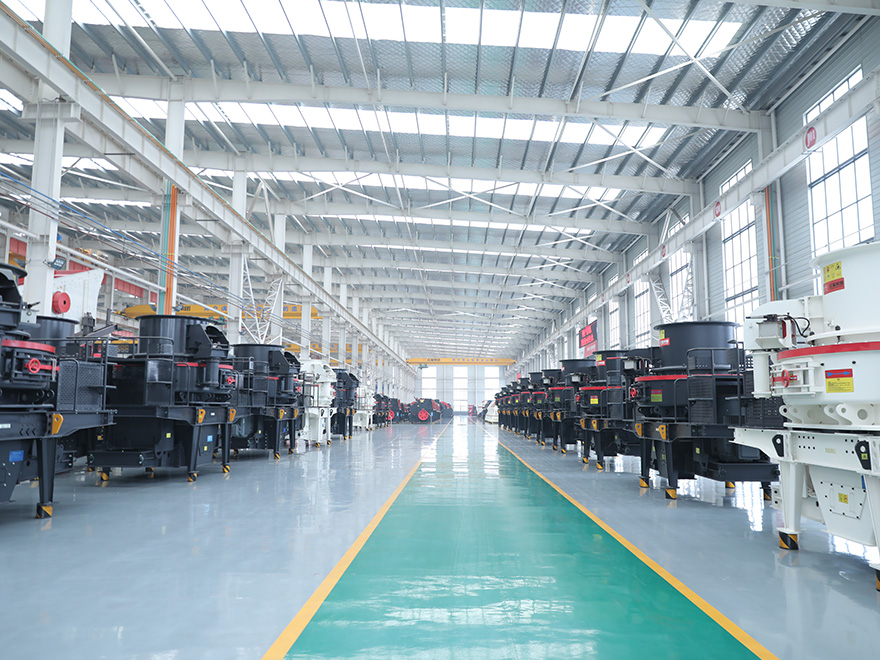

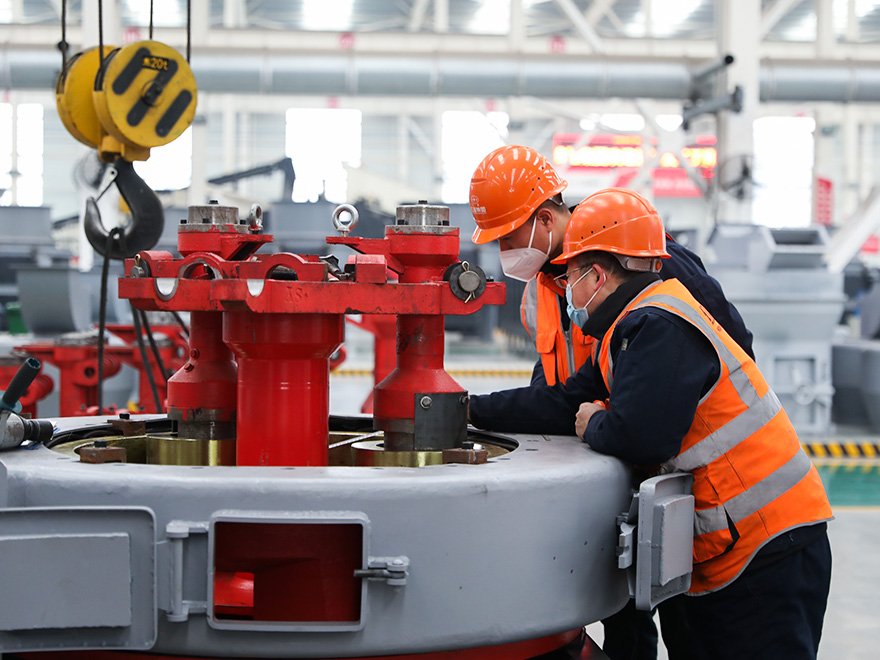

(HXJQ Workers in Manufacturing Plant)

sand maker

(Customer Visit with Sales Man Aside)

Technical data

Model VSI 7611 VSI 8518 VSI 9526 VSI 1140 VSI 1145 VSI 1150
Capacity
(t/h)		 Feed both at center and sides 80-180 140-260 200-380 300-520 350-610 360-650
Feed at center 40-90 70-130 100-190 160-260 180-355 190-365
Max.feeding size
（mm）		 Soft material 35 40 45 50 50 50
Hard material 30 35 40 40 45 45
Rotation speed（r/min） 1700-1890 1520-1690 1360-1510 1150-1300 1150-1300 1150-1300
Motor power（kw） 4P   110 4P   180 4P   264 4P   400 4P   440 4P   500
Overall dimension（L×W×H）（mm） 4100×2250×2300 4160×2360×2500 4540×2500×2830 5500×2750×3100 5500×2750×3100 5500×2750×3100

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
