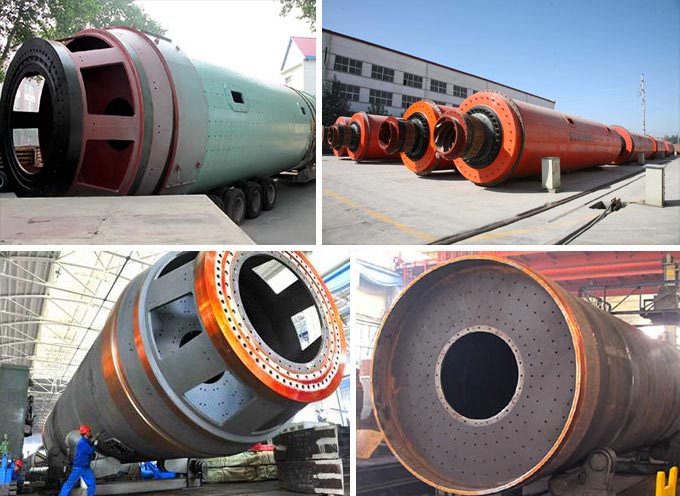

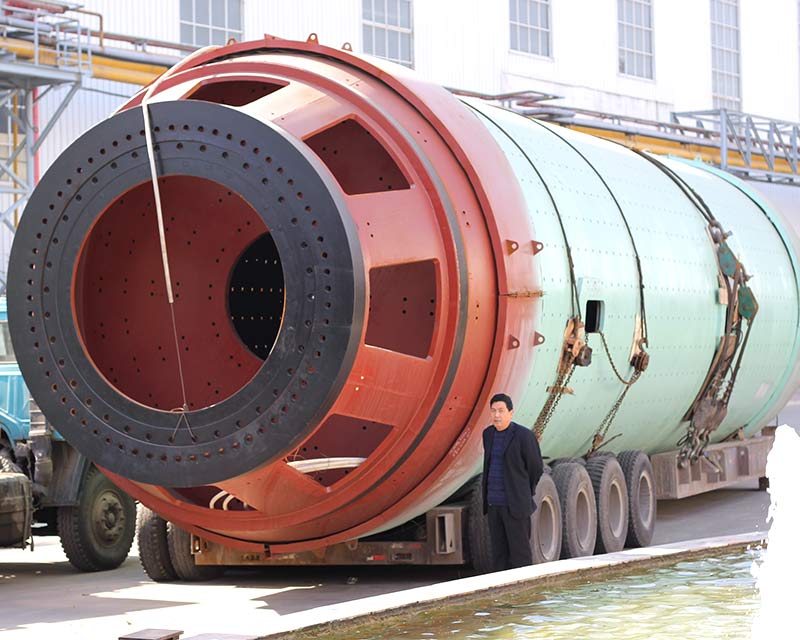

Raw Material Mill
Raw Material Mill
HotProcessing capacity:6.5-135t/h
Milling form:open/circle flow
Specification:φ1.83×7-φ4.6×14m
E-mail:market@hxjq.com
Send Inquiry
Introduction
Raw material mill is mainly used in the grinding of the cement raw, which is also suitable to grind various ores and other grinded materials in the metallurgy, chemical, electricity and other industrial and mining enterprises. It refers to both dry production and wet production, which can also simultaneously grind and parch.
And it can be applied to the open flow grinding and cycle circuit grinding composed of power concentrator as well. The transmission type of the raw material mill is rim drive, which is compact structure and small footprint and thus greatly saves the user investment.
Technical data
| Spec./m (Dia.×Length) |
Speed(r/min) | Feeding Size(mm) | Capacity(t/h) | Griding Media Loading(t) |
Main Motor (KW) |
Main Reducer | Weight (t) |
| Ф1.83×7.0 | 23.8 | ＜20 | 3～5 | 22 | 245 | ZD60 | 43.5 |
| Ф1.83×9.5 | 24.1 | ＜20 | 5～7 | 31 | 355 | ZD70 | 56 |
| Ф2.2×9.5 | 21.5 | ＜20 | 8～10 | 41 | 475 | ZD70 | 74 |
| Ф2.2×11 | 21.5 | ＜20 | 10～12 | 50 | 570 | ZD80 | 109 |
| Ф2.4×11 | 20.3 | ＜20 | 12～14 | 57 | 630 | ZD80 | 116 |
| MBY560 | |||||||
| Ф2.4×13 | 20.3 | ＜20 | 14～16 | 68 | 800 | MBY710 | 138 |
| JDX710 | |||||||
| Ф2.6×11 | 19.7 | ＜20 | 15～16 | 69 | 800 | MBY710 | 138 |
| JDX710 | |||||||
| Ф2.6×13 | 19.7 | ＜20 | 16～18 | 82 | 1000 | MBY800 | 158 |
| JDX800 | |||||||
| Ф3.0×12 | 18.2 | ＜20 | 18～20 | 100 | 1250 | MBY800 | 182 |
| JDX800 | |||||||
| Ф3.0×13 | 18.2 | ＜20 | 21～23 | 108 | 1400 | MBY900 | 190 |
| JDX900 | |||||||
| Ф3.2×13 | 17.8 | ＜20 | 25～27 | 128 | 1600 | MBY1000 | 230 |
| JDX1000 | |||||||
| Ф3.2×14 | 17.8 | ＜20 | 28～30 | 138 | 1800 | MBY1000 | 249 |
| JDX1000 | |||||||
| Ф3.5×13 | 17.3 | ＜20 | 32～35 | 156 | 2000 | JS130-A | 275 |
