Magnetic Separator
Magnetic Separator
HotFeeding size: 3–0 mm
Processing ability: 1–220 t/h
Applied materials: iron ore, ilmenite, chromite, pyrite, zircon, etc
E-mail:market@hxjq.com
Send Inquiry

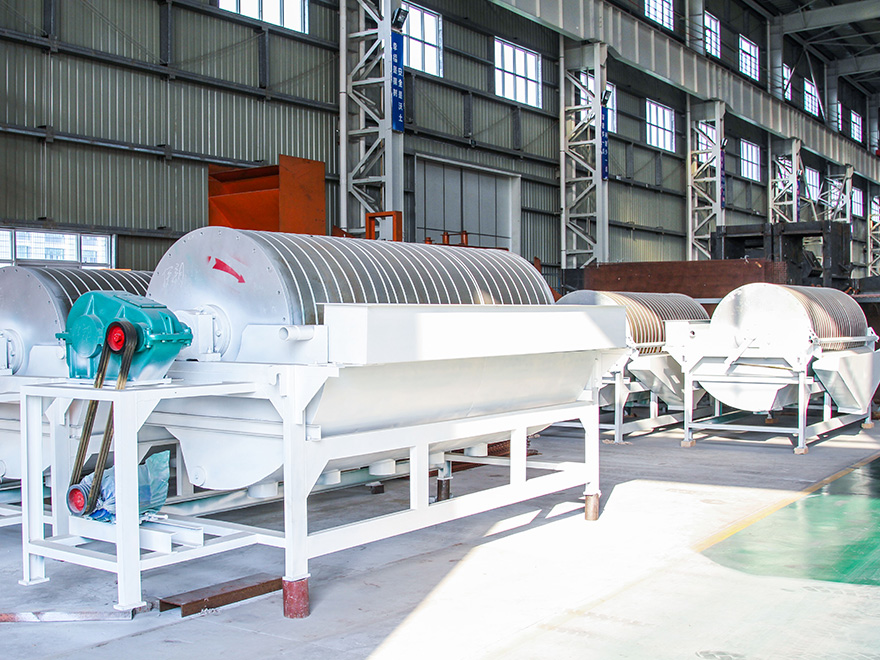

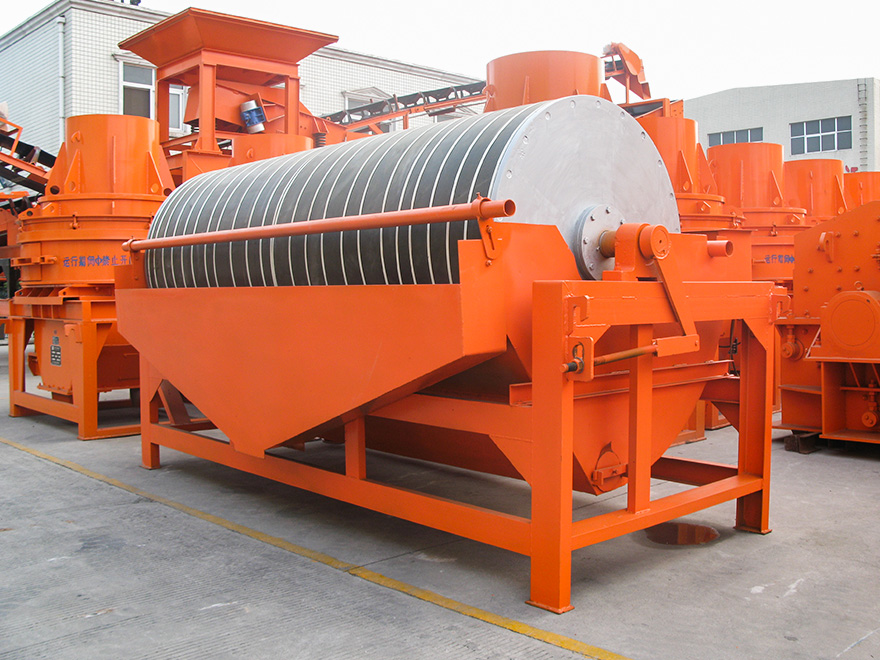

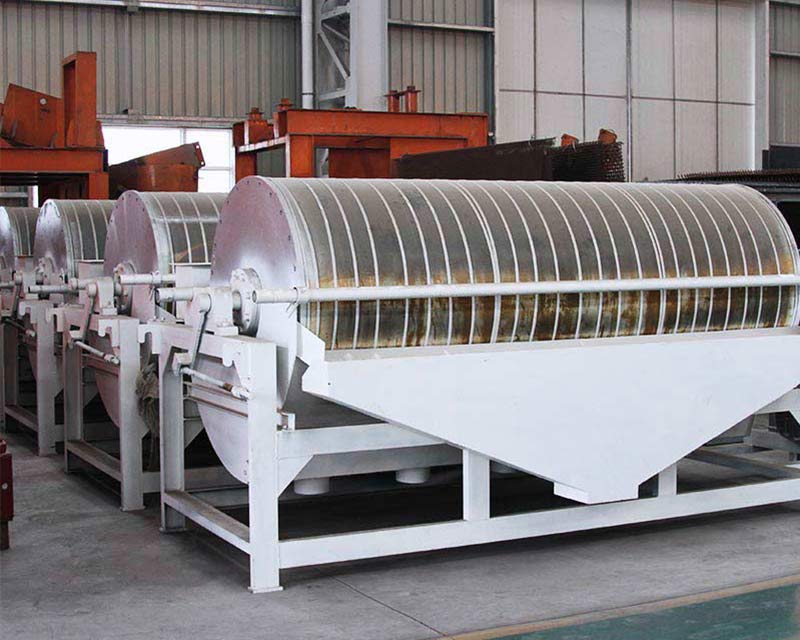

Introduction to Magnetic drum separator
The magnetic separator, also called magnetic drum separator or magnet separator which is used for removing iron powder from coal, non-metallic minerals, building materials and so on.
The magnet separator is in roll shape. Because of the technological development, magnetic strength of the magnet separator is improved to 8000mT, which has been the highest magnetic field strength all over the world.
Advantages of China Magnetic Separator:
1: High working efficiency and excellent de-ironing efficiency
2: Easy to operate and maintain because of the simple structure
3: Key and necessary part for magnetic separation process
Technical data
| Model | Shell diameter （mm） |
Shell lenght （mm） |
Shell rotation speed（r/min） |
Feeding size （mm） |
Processing capacoty （t/h） |
Power（kw） |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
