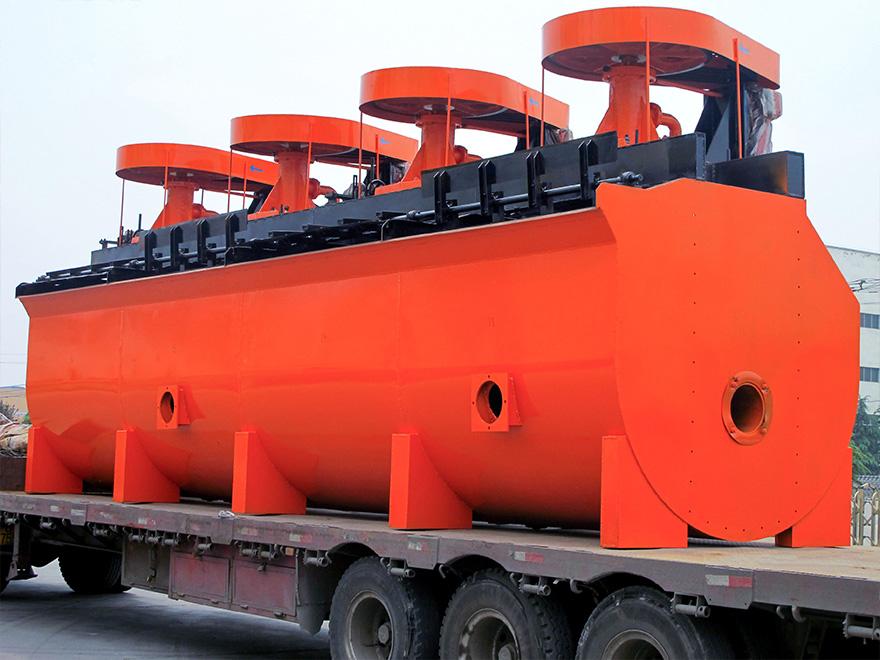

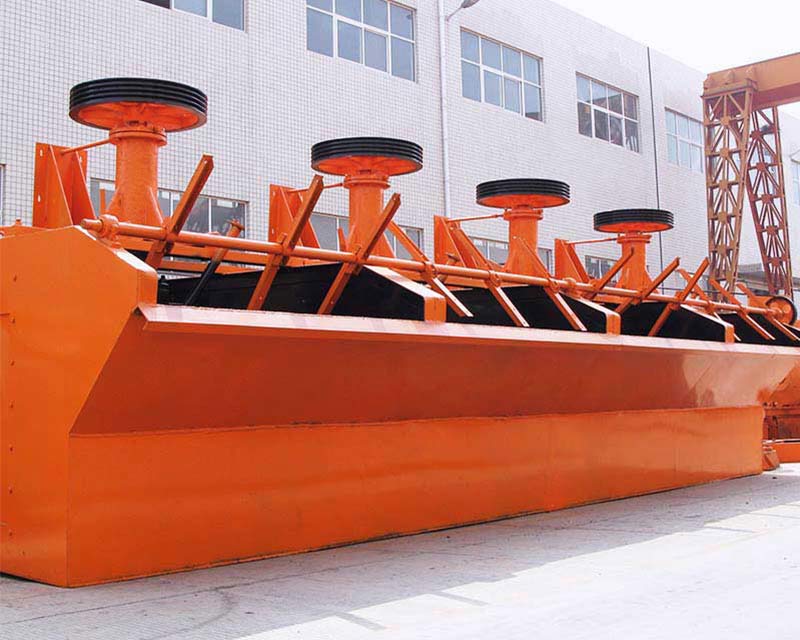

Flotation Cells
Flotation Cells
HotProcessing ability: 0.2–16 m³/min
Types: XJK, SF, JJF
Applied materials: iron ore, ilmenite, chromite, pyrite, zircon, rutile, etc
E-mail:market@hxjq.com
Send Inquiry
Application of Flotation Machine
Flotation machine can be used for separating copper, lead-zinc ore, molybdenum ore, graphite ore, fluorite ore, phosphate, selected gold, silver, iron, rare earth ore, talc and so on. It is widely used in separation and recovery for fine minerals of ferrous metal, precious metal, nonferrous metal, non-metallic minerals, rare metal, non-metal, etc
The Advantages of Flotation Machine:
1. Qualify improvement by 6%
2: Recovery rate improvement by 8%
3: Output improved by 12%
4: Good pulp circulating
5: Self-suction of air
.jpg)
Technical data
| Category | Model | Effective Volume (m³) |
Processing capacity | Main shaft | Loam board | Dimensions (LxWxH) (M) |
||
| Power (kw) |
Rotate speed (r/min) |
Rotate speed (r/min) |
Power (kw) |
|||||
| XJK type flotation machine | XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 0.7×0.7×0.7 |
| XJK-0.62 | 0.62 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.9×0.82×0.85 | |
| XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×10 | |
| XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1.75×1.6×1.1 | |
| XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2.2×2.2×12 | |
| SF type flotation machine | SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 0.7×0.7×0.75 |
| SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.9×0.82×0.95 | |
| SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1.1 | |
| SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1.75×1.6×1.15 | |
| SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1.85×2.05×12 | |
| SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.4 | |
| SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.7 | |
| SF-20 | 20 | 5-20 | 30×2 | 191 | 25 | 1.5 | 2.85×3.8×2.0 | |
| JJF type flotation machine | JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1.4×1.4×1.1 |
| JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1.6×2.15×1.25 | |
| JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.4 | |
| JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.7 | |
| JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2.85×3.8×1.7 | |
| JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2.9×3.8×20 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
