Dryer Machine
Dryer Machine
HotProcessing capacity: 0.5-50t/h
Inlet temperature: ≤800 (℃)
Applied material: slag, clay, limestone, dry-mixed mortar, slag, coal, etc
Introduction
Dryer is used for material with a certain degree of moisture and granularity in concentrating, construction, and metallurgy and chemical plant. The rotary dryers are widely used for a wide variety of materials with easy-to-operate and easy-to-maintain
Technical Features of Drying Machine:
1) Low Consumption
Our dryer adopt reasonable parameters, consumption of coal and electricity will be 10%-15% lower than common dryers

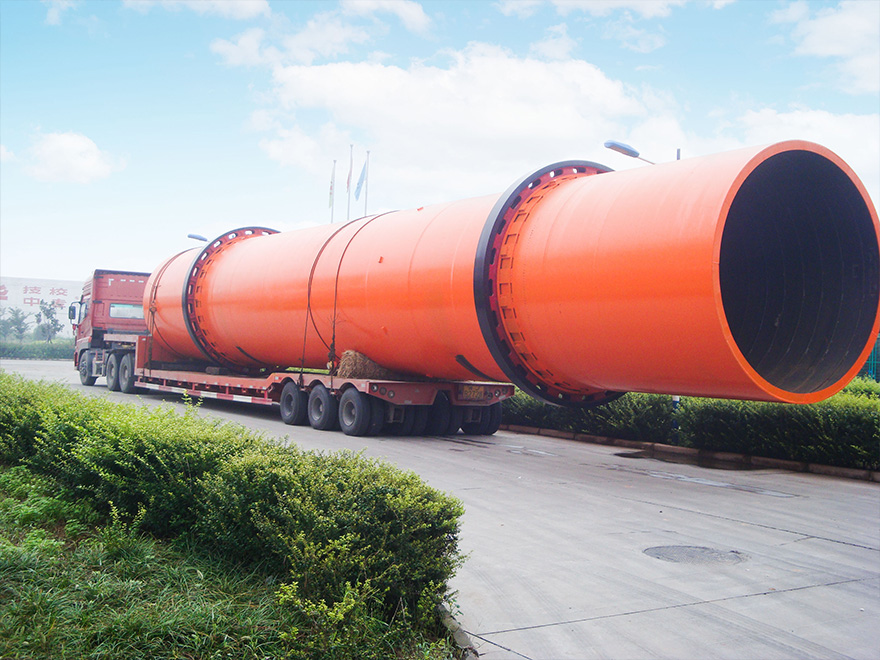

(Our rotary dryer is delivered to India)
2) High capacity
Its capacity will be 10-15% higher and our dryer has been widely applied in the cement and mineral separating industry
.jpg)

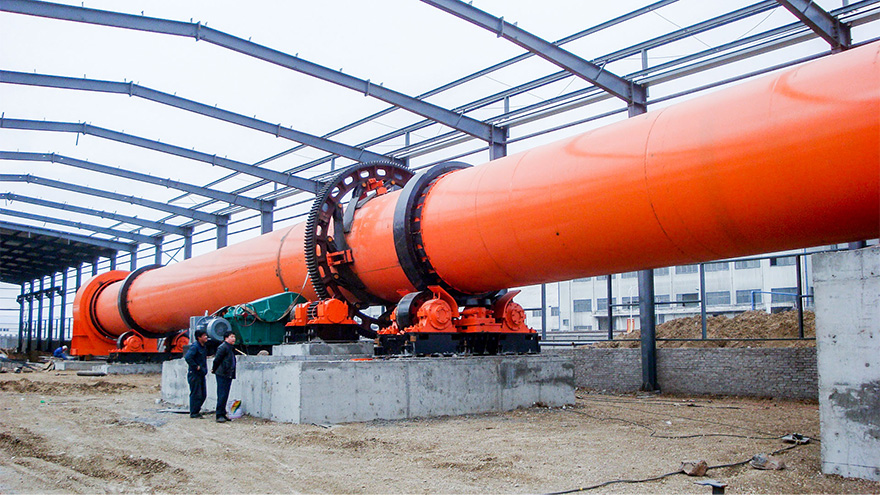

(This rotary dryer is installed on site)
.jpg)
(Test run work is begin and our worker is checking now)
Technical data
| Shell diameter × shell Length | Inside diameter of outer shell （mm） |
Inside diameter of inner shell （mm） |
Shell Length （m） |
Shell cubage （m³） |
Shell obliquity | Lifting blade form | Highest inlet air temperature （℃） |
Dimensions （m） |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
